Closed Frame
Diesel Series
Heavy Duty Closed Frame Silent Diesel Generator Series

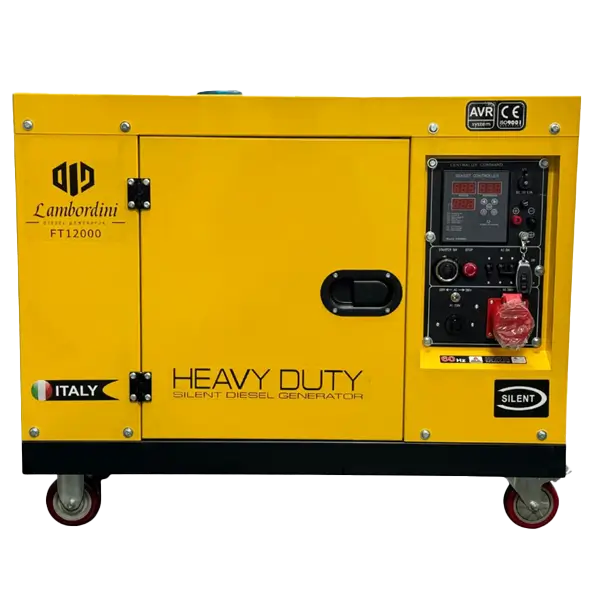

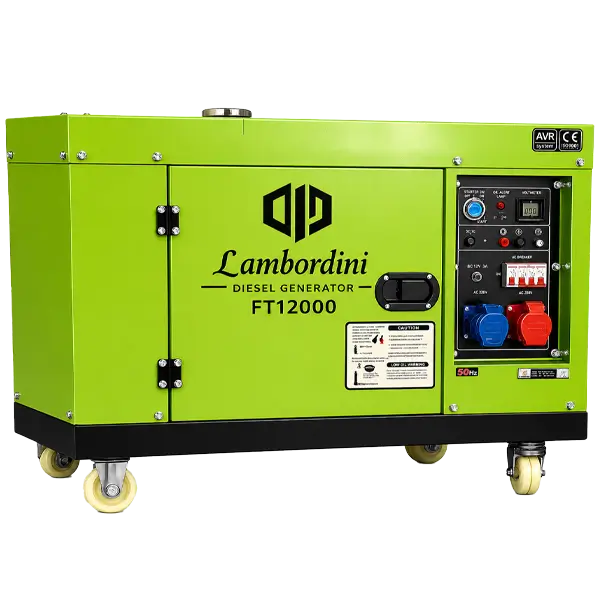

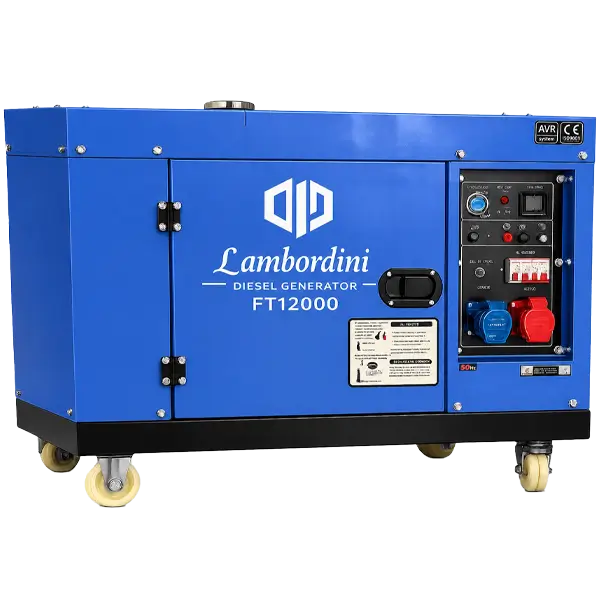

The Lambordini Closed Frame Diesel Series is a robust, mobile diesel generator range designed for reliable standby and prime power across commercial, construction, and light industrial applications. Available in two models — FT12000N and FT14000N — the series combines heavy-duty closed-frame protection, silent canopy design, 50Hz/60Hz performance, and dependable diesel engine platforms.
Built for
Heavy-Duty Diesel Power
TWO MODEL POWER RANGE
Choose FT12000N or FT14000N with 13.5-16.5 kVA standby output and 10.0-15.0 kVA prime rating for different site demands.
HEAVY DUTY CLOSED FRAME DESIGN
Built with a robust closed-frame canopy for dependable use across commercial, construction, and light industrial environments.
SILENT DIESEL GENERATOR SERIES
A silent canopy design helps reduce operating noise while protecting the generator set in demanding work conditions.
LMB DIESEL ENGINE OPTIONS
FT12000N uses the LMB 1.5 platform, while FT14000N uses the stronger LMB 2.2 Turbo diesel engine for higher output.
50Hz/60Hz STANDBY / PRIME OPERATION
Both models operate at 50Hz/60Hz and 1,500 rpm with standby and prime duty cycle capability.
CERTIFIED, EXPORT-READY PLATFORM
CE, ISO 9001, AVR system, R96 / EU Stage IIIA equivalent fuel strategy, and heavy-duty series positioning for international buyers.
Closed Frame Diesel Series
Specification Sheet
| SPECIFICATION | FT12000N | FT14000N |
|---|---|---|
| GENERATOR SET SPECIFICATIONS | ||
| Model | FT12000N | FT14000N |
| Standby Rating (Maximum) | 13.5 kVA | 16.5 kVA |
| Prime Rating (Minimum) | 10.0 kVA | 15.0 kVA |
| Emissions / Fuel Strategy | R96 / EU Stage IIIA Equivalent | R96 / EU Stage IIIA Equivalent |
| Voltage Range | 110-415 V | 200-400 V |
| Frequency | 50Hz/60Hz | 50Hz/60Hz |
| Rated Speed | 1,500 rpm | 1,500 rpm |
| Duty Cycle | Standby / Prime | Standby / Prime |
| ENGINE SPECIFICATIONS | ||
| Engine Model | LMB 1.5 | LMB 2.2 Turbo |
| Bore | 84 mm (3.3 in) | 84 mm |
| Stroke | 89 mm (3.5 in) | 100 mm |
| Displacement | 1.5 L (91.3 in³) | 2.2 L |
| Compression Ratio | 22.5:1 | 22.5:1 |
| Aspiration | Naturally Aspirated | Turbocharged |
| Fuel System | Indirect Injection | Indirect Injection |
| Governor Type | Mechanical | Mechanical |
| GENERATOR SET DIMENSIONS | ||
| Maximum Length | 960 mm | 960 mm |
| Maximum Width | 550 mm | 550 mm |
| Maximum Height | 820 mm | 820 mm |
| Dry Weight (Maximum) | 220 kg | 290 kg |
